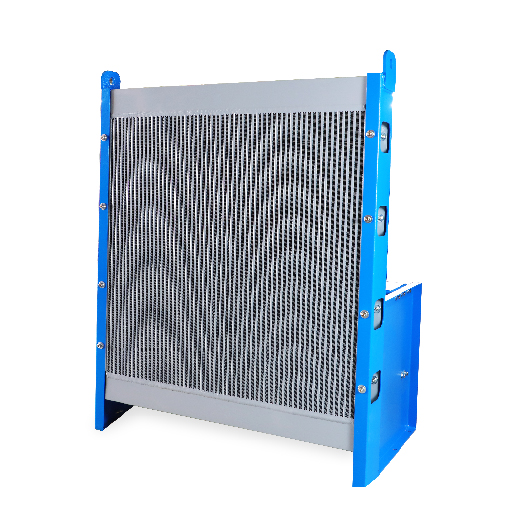

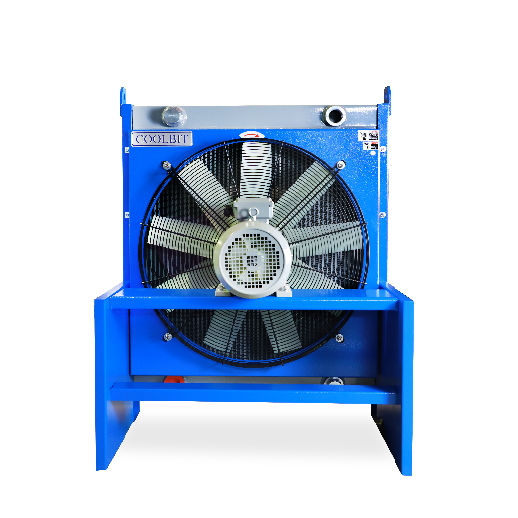

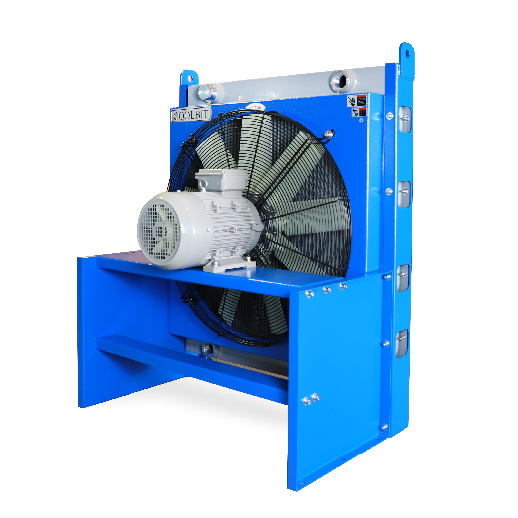

Hydraulic Oil Coolers/ Air-cooled Oil Cooler-AH2890-CA*
PLATE-FIN HEAT EXCHANGERS/COOLERS
Hydraulic oil coolers
Air-cooled oil coolers
PDF Download Hydraulic oil coolers
Air-cooled oil coolers
Specification
Specification / Model
AH-2890-CA* Cooler
Thread
1 1/2" Rc/PT"
Fan diameter
700 mm
Cooling capacity
60000 Kcal/h
Motor
100~125 Hp
Size
875*1000*900 mm
Weight
150 kg
Frequency / Voltage / Current
50Hz , 3Φ 220-240 / 380-415 , 9.62-8.82A / 5.71-5.1A
Frequency / Voltage / Current
60Hz , 3Φ 220 / 380-440 V , 9.68 A / 5.6-4.84 A
Approval
CE
Feature
- Best way to use :
- Hydraulic Presses Kidney Loop
- Off-line Recirculation cooling
